Description

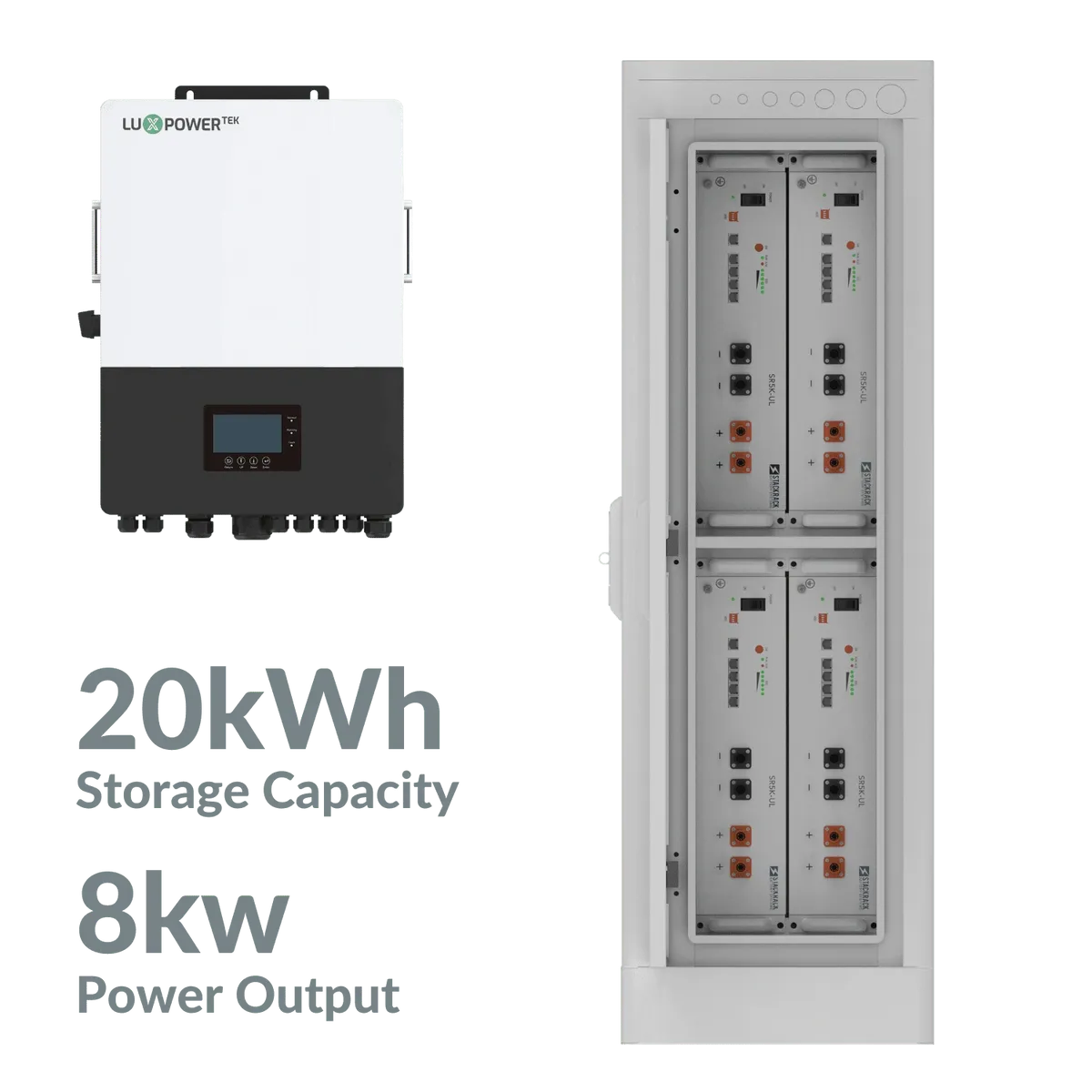

Provide your home or business with 20 kWh of safe and reliable battery storage in a simple to install, outdoor-rated battery cabinet. Ideal for essential load backup and avoiding expensive utility peak times.
Inverter:
- 8 kW continuous output power
- Connect up to 14.4 kW of existing solar
- Connect up to 12 kW of new solar
- Integrated AC/DC breakers
- Less than 10 ms transfer time
- Remote monitoring & programming
Battery:
- Non-flammable lithium iron phosphate (LFP) chemistry
- Pre-assembled, outdoor-rated (NEMA 3R) battery cabinet
- Installation in under 30 minutes
- Low Profile – less than 16″ deep
- Modular Design – simple to add more batteries and cabinets
- Closed-loop communication
- Certified – UL 1973, UL 9540a, UL 9540
- CEC & SGIP listed
Specifications:
Inverter
- ModelLXP-LB-US 8K
- Max PV Input Power (Solar)12000W
- DC Input Voltage Range (Solar)100-600VDC
- Nominal DC Input Voltage (Solar)360VDC
- Max Power MPPT Voltage Range (Solar)170-500VDC
- Max DC Input Current (Solar)25A/25A
- MPPT Number/(Strings per MPPT) (Solar)2/2
- Max AC Coupling (Solar)60A (14.4 kW)
- Maximum Charging/Discharging Current (Battery)167A/167A
- Maximum Charging/Discharging Power (Battery)8000W
- Nominal Power (Grid)8000W
- Nominal AC Voltage (Grid)120/240/208V Split Phase
- Max Continuous AC Current (Grid)38.5A
- Nominal AC Frequency (Grid)50/60Hz
- Backup Max Output Power8000W
- Backup Output Voltage120/240/208V Split Phase
- Backup Output Frequency50/60Hz
- Backup Nominal Output Current35A
- Backup Peak Power16000W for 0.5s
- Transfer Timeless than 10ms
- Dimensions (in)22.83 x 19.29 x 10.43
- Weight97 lbs
- TopologyTransformer-less
- Safety CertificationsUL 1741, CA Rule 21, HECO 14H
Battery
- Type (Chemistry)Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage51.2 VDC
- Voltage Range47.5 VDC to 58 VDC
- Nominal Capacity (Ah)400
- Nominal Energy (kWh)20.48
- Peak Discharge Rate20.88 kW for 15s
- Maximum Continuous Discharge Rate200A (10.24 kW DC)
- Standard Continuous Discharge Rate200A (10.24 kW DC)
- Maximum Continuous Charge Current200A
- Standard Continuous Charge Current200A
- Round-Trip Efficiency≥95%
- Communication ProtocolRS232, RS485, CAN
- Cycle Life:70% retained capacity after 6000 cycles to 90% DOD
- Operating Temperature (F)32 to 122
- Connection Type Parallel
- CertificatesUL 1973, UL 9540A, UL 9540
- Warranty10 Years
Cabinet
- ModelSRB4
- Dimensions (H x W x D)49.7″ x 33.5″ x 15.8″
- Enclosure RatingNEMA 3R (IP55)
- Cabinet Weight with Batteriesup to 550 lbs
- Cabinet Installation StyleFloor-Mount
- Cabinet FixationConcrete Lag Bolts (4x 3/8″)
- Conduit Knockouts3x 2″
- Busbar Rating300A
